Arduino Hellschreiber II

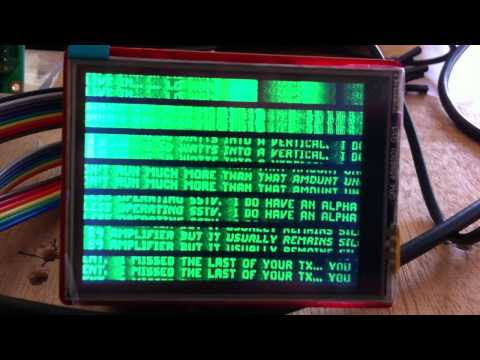

I modified the input circuit of my Hellschreiber Arduino project so I could feed it directly with audio from a receiver or other source. I replaced the electret mic with a 600:600 ohm isolation transformer. Yesterday (Saturday 10-18-2014) I recorded some of the Hellschreiber Sprint (2014-sprints) and the video below is a part of a QSO between Lou W8LEW and Bill WD9EQD before the contest on 20 meters. I recorded it using the WebSDR network and K2SDR receiver(s) in New Jersey.




Below is the complete circuit to feed the receiver audio into the Arduino for display. I am using three of the analog ports. One for the signal and two for pots to adjust the contrast of the signal on the display. Perhaps others will have better ideas of dealing with display adjustments and image processing. The cool thing is that Hellschreiber can be generated by a simple QRP CW transmitter and with the Arduino display and a simple direct conversion receiver, a portable Hellschrieber rig could be built. I am also thinking about a software based squelch that will pause the display when there is not a valid Hellschreiber signal present. This could be cool for beacons or short messages since the display holds over 2 minutes of receive output. You could then review transmissions that occurred hours ago.



Here is the code I am using currently. You will need to get the Seed 1.0 TFT library setup first and I suggest testing the display with the example code provided from Seed before trying my code. 73



 // Seven Line Hellscriber Painter

 #include <stdint.h>
 #include <TFT.h>

 int analogPin = 5; // The audio input pin
 int analogPot1 = 4; // Lower Limit Pot pin
 int analogPot2 = 3; // Upper Limit Pot pin


 int x, y, x2; // plotting varables
 int sig = 0; // Audio signal varable
 int pot1, pot2; // Analog pot values
 int greendot, dot; // The Hellscrieber dot varables
 int lower, upper; // Contrast mapped pot values




 void setup()
 {

 Tft.init(); //init TFT library

 }

 void loop()
 {
  // Each Line is 28 pixels high
  for (int y=0; y<320; y++)
  {
  for (int x=215-x2; x<229-x2; x++)
  {
   sig=analogRead(analogPin); // signal input
   pot1=analogRead(analogPot1); //get lower limit
   pot2=analogRead(analogPot2); //get upper limit

   lower=map(pot1,0,1023,0,511); // map pot1 to lower range
   upper=map(pot2,0,1023,512,1023); // map pot2 to upper range

   dot=map(sig,lower,upper,0,63); // Signal mapped into 5 bits with a lower & upper limit for contrast

   greendot= dot << 5; // shift the dot value into the green range of the display RGB 565

   Tft.setPixel(x, y, greendot); // plot green dot
   Tft.setPixel(x+13 ,y ,greendot); // plot sample green dot again shifted by 14 pixels

   delayMicroseconds(3480L); // master time delay for Hellschreiber

  }
  }
  x2=x2+35; // paint line offset with boundary to seperate each line with black space
  if(x2>210) x2=0; // if seventh line, start at the top again
 }
